Yep thats the part I used.
The first picture was taken from a Thread at the RPF.
The next picture is the total length of the 8 rad part
The next picture is the inner measurement of the 8 Rad part which is what Eric used to scale his build.
These are the best reference I can locate for now.

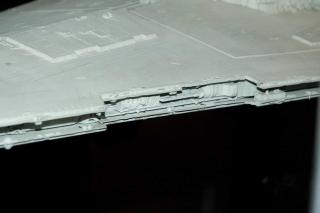

We can clearly see in the Portside 8 Rad piece that one end of the 8 Rad part has been removed.
This reduces the length of the 8 Rad part from 16.2cm(162mm) to 15.7cm(157mm).
We should be able to us that length to measure up the centre dimension, outer edges & tip to tip to give us a pretty accurate scale.
If anyone can produce an accurate plan for this I am happy to cover costs.
